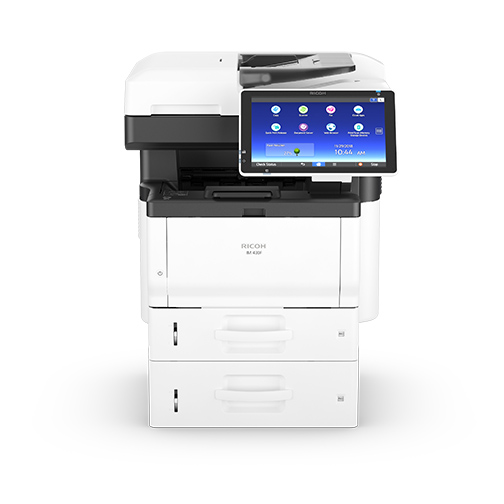

IM 430F
Powering smartly through your paperwork, this compact 43 ppm all in one printer can print, copy, scan and fax.
- B&W printing
- Fax
- A4
- Scanning
- Copier
- Features and benefits
- Specifications
The impressive functionality and performance of the IM 430F can be shared by workgroup users. Documents can be printed directly from iOS and Android devices. To safeguard security, the all in one printer supports tap and go authentication and confidential documents can be locked, pending release. Switching seamlessly between the optional paper trays, it need never run out of paper. And, thanks to its space-saving design and quiet operation, the IM 430F can be placed within easy reach of workgroup users.
- Smartly manages all document processes, including fax communication
- Super-sized 10.1 inch Smart Operation Panel simplifies operation
- Smart apps, such as ID Card Copy, automate time-consuming processes
- Eliminating bottlenecks, the first 1,200 dpi print is ready in under six seconds
- Multipage document sets can be neatly finished using the offline stapler option
- Energy-saving features reduce power consumption and contribute to a low total cost of ownership
- Supports use of integrated workflow solutions, such as Ricoh StreamLine NX
Specifications
General
| Warm-up time | 22 seconds |
| First copy speed: BW | 5.9 seconds |
| Continuous output speed | 43 ppm |
| Memory: standard | 2 GB |
| Memory: maximum | 2 GB |
| HDD: standard | 320 GB |
| HDD: maximum | 320 GB |
| SPDF capacity | sheets |
| Weight | 30.5 kg |
| Dimensions: W x D x H | 476 x 442 x 510 mm |
| Power source | 220 - 240 V, 50 - 60 Hz |
Copier
| Multiple copying | Up to 999 copies |
| Copy resolution: maximum | 600x600 dpi |
| Zoom | From 25% to 400% in 1% steps |
Printer
| CPU | Intel Atom Processor Bay Trail 1.46GHz |
| Printer language: standard | PCL5e PCL6 PostScript 3 (emulation) PDF direct (emulation) |
| Printer language: option | Genuine Adobe® PostScript®3™ IPDS PDF Direct from Adobe® |
| Print resolution: maximum | 1,200 x 1,200 dpi |
| Network interface: standard | Ethernet 10 base-T∕100 base-TX∕1000 base-T USB Host 2.0 |
| Network interface: option | Bi-directional IEEE 1284 Wireless LAN (IEEE 802.11a∕b∕g∕n) Additional NIC (2nd port) |
| Mobile printing capability | Apple AirPrint Mopria® Google Cloud Print NFC Ricoh Smart Device Connector |
| Network protocol | TCP/IP (IP v4, IP v6) |
| Windows® environments | Windows® 7 Windows® 8.1 Windows® 10 Windows® Server 2008 Windows® Server 2008R2 Windows® Server 2012 Windows® Server 2012R2 Windows® Server 2016 |
| Mac OS environments | Macintosh OS X v10.10 or later |
| UNIX environments | UNIX Sun® Solaris HP-UX SCO OpenServer RedHat® Linux IBM® AIX Citrix XenApp |
| SAP® environments | SAP® R/3® SAP® S/4® |
| Other supported environments | NDPS Gateway AS/400® using OS/400 Host Print Transform IBM iSeries |
Scanner
| Scanning speed: SPDF (A4 LEF, 200dpi, B&W full colour) | 43.4 ipm (simplex) - 80 ipm (duplex) |
| Resolution: maximum | 1,200 dpi |
| File formats | Single Page TIFF Single page JPEG Single page PDF Single page High compression PDF Single page PDF∕A Multi page TIFF Multi page PDF Multi page High compression PDF Multi page PDF∕A |
| Scan modes | E-mail Folder USB SD Card |
Fax
| Circuit | PSTN PBX |
| Transmission speed | seconds |
| Modem speed: maximum | Kbps |
| Compression method | MH MR MMR JBIG |
| Scanning speed | 28 spm |
| Memory: standard | 4 MB (320 pages) |
| Memory: maximum | 4 MB (320 pages) |
Paper Handling
| Recommended paper size | A4 A5 A6 B5 B6 A4 A5 A6 B5 B6 A4 A5 A6 B5 B6 Custom Size paper: Width: mm - mm, Length: mm - mm |
| Paper input: standard | 500 sheets |
| Paper input: maximum | 2,100 sheets |
| Paper output: standard | 250 sheets |
| Paper weight | 52 - 220 g̸ m² 52 - 256 g̸ m² 52 - 162 g̸ m² |
| Paper types | Plain paper Recycled paper Special paper Colour paper Letterhead Preprinted paper Envelope Label paper OHP |
Ecology
| Power consumption: max. | < 1,290 W |
| Power consumption: operation | 625 W |
| Power consumption: ready | 91.5 W |
| Power consumption: sleep | 1.1 W |
| TEC* | 0.59 kWh⁄week |
| * It is a reference value based on the ENERGY STAR Ver.3.0 test method. |
Input/Output Trays And Finisher Options
| 3x 250-sheet paper tray 3x 500-sheet paper tray |
Other Options
| Fax connection unit High cabinet Low cabinet IPDS unit Offline stapler PostScript 3 XPS direct print Bi-directional IEEE 1284 IEEE 802.11 a/b/g/n USB Device Server File format converter OCR unit Enhanced security HDD Data overwrite security unit Page keeper Key counter bracket Extended USB board Paperlock Card reader cover Bridge unit |
Consumables
| Starter toner | 17,400 prints |
| Drum | 70,000 sheets |
| Toner (black) | 17,400 prints |
| Consumable yield measuring method ISO/IEC 19752 |
Filter
| Colour Capability | B&W |
| Max Paper Size | A4 |
| Finishing | Available |
| Print Speed | 43 |
| Function | Print, Scan, Copy, Fax |
| Max Paper Capacity | 2,100 |
