D8600

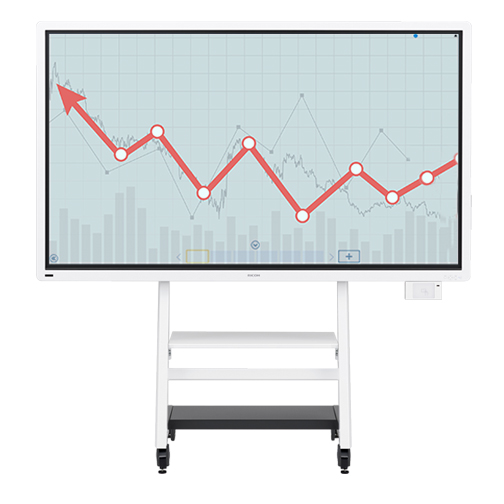

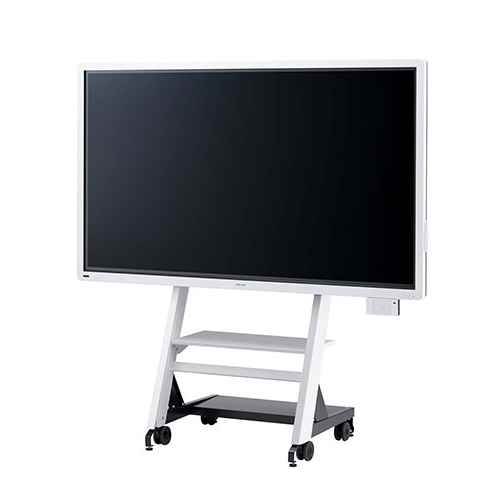

Ricoh's super-sized Interactive Whiteboard D8600 is the perfect presentation tool for larger meeting spaces.
- Features and benefits
- Specifications

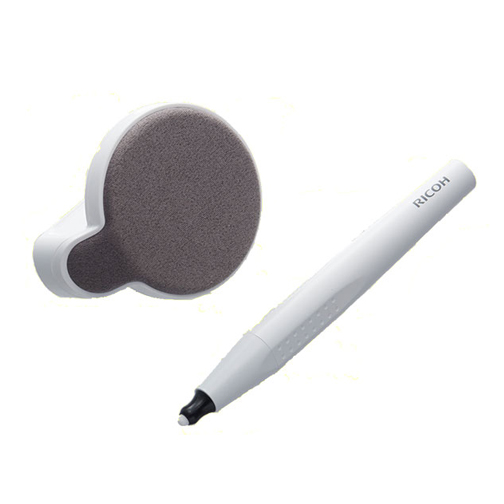

It is easy to annotate presentations. The ergonomically shaped pen is perfectly weighted, and with ShadowSense™ technology, the fine detailing is second to none. The D8600 also supports videoconferencing (option) and can be linked seamlessly to other whiteboards, tablets and smartphones, enabling remote participants to share information and collaborate on documents in real time.
- Engage, enlighten and enthuse larger audiences
- Sophisticated design and streamlined profile
- 4K display and shadow sensing for more accurate imaging
- Fast start and intuitive operation improve professionalism
- Seamlessly connect whiteboards, tablets and smartphones
Specifications
General
| Interface: input (video) | VGA HDMI DVI-D Display port D-sub15 (Computer IN) |
| Interface: input (audio) | Line 3.5 |
| Interface: output (video) | Display port |
| Interface: output (audio) | Speaker Out |
| Interface (others) | USB 2.0 (type A) x 4 RS-232-C USB 3.0 (type A) x 4 |
| Dimensions: W x D x H (mm) | 2,009 x 125 x 1,200 |
| Weight (kg) | Mainframe: 122 Full configuration: 124 |
| Power source | 100 - 240 V, 50/60 Hz |
Ecology
| Sound power level: full system (dB) | 35 |
| Power consumption: maximum (W) | 510 |
| Power consumption: standby mode (W) | 0.5 |
| Operating temperature (°C) | 0 - 32 |
| Operating humidity (%) | 10 - 80 |
Display Panel
| Panel size: diagonal (" wide / mm) | 85.6 / 2,174.24 |
| Backlight | LED system |
| Effective display area: W x H (mm) | 1,895.04 x 1,065.96 |
| Resolution: maximum (Full HD) | 3,840 x 2,160 |
| Colours: maximum | 1,070,000,000 |
| Brightness: maximum (cd/m²) | 410 |
| Aspect ratio | 16 : 9 |
| Contrast ratio | 1,200 : 1 |
| Pixel pitch (mm) | 0.4935 x 0.4935 |
| Response speed: grey to grey, Ave. (ms) | 8 |
| Viewing angle: H/V (°) | 178/178 |
Touch System
| Touch point: display only (point) | 10 |
| Accuracy (mm in touchable area) | 2 |
| Touch output | USB 3.0 (type B) |
| Multi touch | Windows 7 Home Premium Windows 7 Ultimate Windows 7 Professional Windows 8/8.1 Windows 8/8.1 Pro Windows 8/8.1 Enterprise Windows Embedded 8 Standard Windows 10 Home Windows 10 Pro Windows 10 IoT Windows 10 Enterprise Windows Embedded 7 Standard |
| Single touch | Windows 7 Home Basic Mac OS X 10.8 - Mac OS X 10.13 |
| Protection glass thickness: including AR coating (mm) | 4 |
