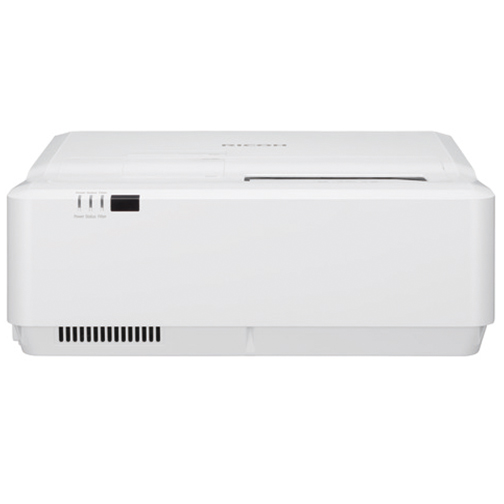

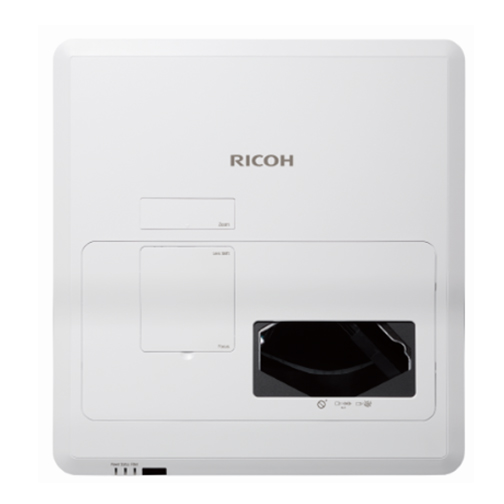

PJ WUC4650
The PJ WUC4650 ultra-short throw projector with HLD light source technology delivers impressive image quality
- Features and benefits
- Specifications
- Ultra Short Throw projection from just 75cm for screen size of 130 inches
- Exceptionally long life of 20,000h thanks to the new HLD light source technology
- Powerful speakers and 3,600lm brightness optimal for corporate/ education environments or digital signage
- Flexibility based on compatibility with room control systems like Crestron, AMX and PJ-Link
- Eco-friendly solution with reduced electricity consumption
Specifications
General
| Projection system | 3 LCD |
| x | |
| Resolution: WUXGA (pixels) | 1,920 x 1,200 |
| Brightness (lumen) | 3,600 |
| Contrast ratio | 2,500,000:1 |
| Projection screen size (") | 70 - 130 |
| Throw ratio | 0.27:1 (Ultra Short Throw) |
| Light source | HLD |
| Light source life (hours) | 20,000 |
| Zoom | Manual |
| Focus | Manual |
| Zoom ratio | 1.05 |
| Network projection | Wired |
| Interface | Mini D-SUB15pin x 1 (Computer IN) Mini D-SUB15pin x 1 (Monitor OUT) HDMI x 1 HDMI(MHL) x 1 Mini jack x 1 RCA(R/L) x 1 Video x 1 USB type A x 1 USB-B mini x 1 Control LAN x 1 |
| Primary features | Lens shift 4 Corner Adjustment 360° Tilt Free |
| Built-in speaker | 10 W x 2 |
| Compatibility | PJ Link Crestron AMX Extron |
| Dimensions: W x D x H (mm) | 449 x 425 x 153 |
| Weight (kg) | 10.9 |
| Lens | Built-in Optional |
| Lens Shift | Horizonthal / Vertical (Manual) |
Ecology
| Power consumption: max at 220 V (W) | 425 |
| Power consumption: ECOmax at 220 V (W) | 294 |
| Power consumption: standby mode (W) | <0.5 |
| Noise level: Standard mode (dB) | 37.5 |
| Noise level: Eco mode (dB) | 33.5 |
Consumables
| Replacement lamp Replacement lens Air filter |
Accessories
| Main unit Set-up guide & safety instructions Read this first / manual (starting guide) Quick guide Power cable RGB cable VGA cable USB cable HDMI cable CD-ROM and manual Wireless remore controller (Infrared) Remote control with batteries Micro USB to USB Type A cable Carrying case Lens cap DVI-HDMI adapter AC adapter Filter (built-in) Interactive kit Battery Warranty card End user license agreement Felt-tipped pen Bluetooth dongle |
