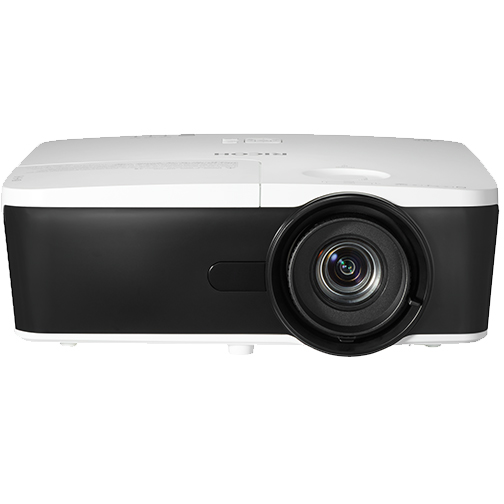

PJ WU5570
High image quality WUXGA projector with extensive connectivity options and powerful management features, including compatibility with latest network management utilities for easy operation.
- Features and benefits
- Specifications
Powerful image projection allows screening from 30 to 300 inches providing a wide choice of screening rooms and auditoriums. Two HDMI ports, including one MHL enabled, allow connection of mobile devices including smart phones. You can also connect a range of input devices such as network PCs and even video HD sources like Blu-ray players.
- The ideal high quality digital projector for audiences from 10 to 50 people
- WUXGA 1920 x 1200 pixel resolution for screening HD quality content from a range of HD input sources
- Two integral 10W speakers allow AV presentations without additional amplified external sound system
- Vertical and horizontal lens shift with keystone correction gives complete flexibility in installation location
- Eco Mode extends lamp life up to 4,000 hours (292 W) reduces replacement time and saves energy
- USB port means that you can screen slideshows without the need for a computer connection
Specifications
General
| Projection system | Single chip DLP |
| Resolution | PJ X5580: 1,024 x 768 PJ WU5570: 1,920 x 1,200 |
| Panel | PJ X5580: 0.7 inch PJ WU5570: 0.67 inch |
| Aspect ratio | PJ X5580: 4:3 PJ WU5570: 16:10 |
| Brightness | PJ X5580: 6,000 lumen PJ WU5570: 5,500 lumen |
| Contrast ratio | 9,000:1 |
| Projection screen size | 30" to 300" |
| Projection distance | 1 to 13.5 m (from rear of unit to projection surface) |
| Throw ratio | PJ X5580: 1.3-2.2 PJ WU5570: 1.2-2.2 |
| Lamp | Mercury lamp |
| Lamp life | Standard: 3,000 hours (365 W) Eco mode 1: 4,000 hours |
| Zoom ratio | 1.8 |
| Zoom | Manual |
| Focus | Manual |
| Connection terminal | Mini D-SUB15pin x 2 (Computer IN) Mini D-SUB15pin x 1 (Monitor OUT) Mini DIN 4pin x 1 (S-Video) RCA_1pin x 1 (Video) D-SUB 9pin x 1 (PC Control) HDMI 1/ MHL in x1 HDMI 2 in x1 Display port x1 3.5 mm mini Jack x1/x2 RCA audio jack (Left/Mono) x1 RCA audio jack (Right) x1 |
| USB | Type-A x 1 |
| Wired LAN | RJ-45 x 1 (10BASE-T/100BASE-TX/1000BASE-T) |
| Wireless LAN | LAN IEEE 802.11b/g/n compliant |
| Primary features | Mute (Blank) Freeze Re-size (Magnify) Auto keystone Password protection User logo Eco mode 3D Ready Wall Color mode Kensington lock Firmware update |
| Built-in speaker | 10 W x 2 |
| Dimensions (W x D x H) | 424 x 356 x 150 mm |
| Weight | 6.35 kg |
| Power source | 100 - 240 V, 50/60 Hz |
Ecology
| Sound power level (full system) | 35 dB |
| Power consumption | 495 W 395 W 1 W |
| Operating temperature | 5°C - 40°C |
| Operating humidity | 20% - 80% |
| Storage conditions | -20°C - 60°C 20% - 80% |
Consumables
| Replacement lamp Type 22 |
Accessories
| Set-up guide & safety instructions Read this first / Manual (Starting Guide) RGB cable Power cable CD-ROM and manual Remote control with batteries Lens cap Filter (built-in) |
