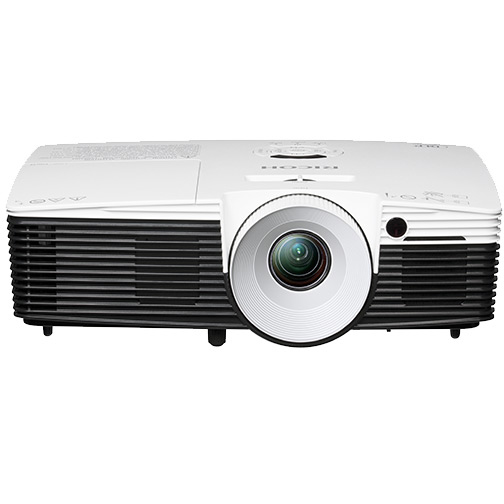

PJ X5460
Essential technology at a price you can afford. With HDMI interface for screening high quality images, including 3D content, and EcoMode to reduce energy use and ensure long lamp life.
- Features and benefits
- Specifications
The 1.2 to 12M distance for projection allows flexible screening of presentations up to 300 inches in size so you can locate in a small office or larger conference room. For installation in larger rooms you can also connect an external sound system, if required. Input up to two devices directly or use the LAN connection for remote input over your network.
- 4000 lumens output gives bright, clear presentations
- 1024x768 (XGA) resolution for sharp displays
- Including a carry case and lens cap for easy relocation
- Wide range of interface input including HDMI, 2 x computer and sound
- Control projector remotely thanks to utility software and LAN capability
Specifications
General
| Projection system | Single chip DLP |
| Resolution | X5460: 1,024 x 768 WX5460: 1,280 x 800 HD5450: 1,920 x 1,080 |
| Panel | PJ WX5460/HD5450: 0.65 inch PJ X5460: 0.55 inch |
| Brightness | X5460: 4,000 lumen WX5460: 4,100 lumen HD5450: 3,500 lumen |
| Contrast ratio | WX5460/HD5450: 2,000:1 X5460: 2,200:1 |
| High contrast ratio | 10,000:1 |
| Projection screen size | WX5460: 30"-300" X5460: 30"-300" HD5450: 38"-300" |
| Projection distance | X5460: 1.2 to 12 m WX5460: 1 to 10 m HD5450: 1.5 to 10 m |
| Throw ratio | X5460: 1.95-2.15:1 WX5460: 1.55-1.7:1 HD5450: 1.5-1.8:1 |
| Lamp | High-pressure mercury lamp (Dual) |
| Lamp life | Standard: 3,000 hours (260 W) Eco mode 1: 4,000 hours |
| RGB compatible signals | X5460/WX5460: WXGA, XGA, SVGA, VGA HD5450: WXGA, XGA, SVGA, VGA, FHD, WSXGA, WXGA+, SXGA PJ X5460: UXGA, SXGA, WXGA PJ WX5460: UXGA, SXGA PJ HD5450: UXGA |
| Input signals | NTSC PAL SECAM NTSC4.43 PAL-M PAL-60 |
| Analogue RGB compatible scanning frequency | 30 - 100 kHz 50 - 85 Hz, 120 Hz for 3D mode |
| Zoom ratio | x1.1 (manual) HD5450 : x1.2 (manual) |
| Connection terminal (X5460/WX5460) | Mini D-SUB15pin x 2 (Computer IN) Mini D-SUB15pin x 1 (Monitor OUT) Mini DIN 4pin x 1 (S-Video) RCA_1pin x 1 (Video) D-SUB 9pin x 1 (RS-232C) (PC Control) Mini Jack x 1 (Audio1 IN, Audio2 IN, Audio OUT) USB-TYPE-minB x1 HDMI(1.4) x 1 RJ45 (for control) |
| Connection terminal (HD5450) | Mini D-SUB15pin x 1 (Computer IN) Mini DIN 4pin x 1 (S-Video) RCA_1pin x 1 (Video) D-SUB 9pin x 1 (RS-232C) (PC Control) Mini Jack x 1 (Audio1 IN, Audio OUT) USB-TYPE-minB x1 HDMI(1.4) x 2 RJ45 (for control) |
| Primary features | Mute (Blank) Freeze Re-size (Magnify) Eco mode 3D Ready Wall Color mode Security bar Kensington lock |
| Built-in speaker | 10 W mono |
| Dimensions (W x D x H) | 314.2 x 223.5 x 101.7 mm |
| Weight | 3 kg |
| Supported languages | English German French Italian Spanish Dutch Swedish Norwegian Danish Finnish Hungarian Czech Polish Portuguese Russian Korean Traditional Chinese Simplified Chinese Turkish Arabic Indonesian Japanese Thai |
| Power source | 100 - 240 V, 50/60 Hz |
Ecology
| Power consumption | 347 W 292 W 0.5 W |
| Operating temperature | 5°C - 40°C |
| Operating humidity | 80% |
| Storage conditions | -20°C - 60°C |
| Noise level | Standard mode: 37 dB Eco Mode: 34 dB |
Options
| RICOH PJ 3D glasses Type 2 |
Consumables
| Replacement lamp Type16 |
Accessories
| Power cable RGB cable CD-ROM and manual Remote control with batteries Carrying case Lens cap |
