Pro™ 8300s Series
Ricoh Pro™ 8300S Series are high end mono sheetfed production printers delivering outstanding up-time performance to help you stay ahead. Offering enhanced finishing options, they provide versatile and efficient printing capabilities as well as superb print quality.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Wifi networking
- B&W printing
- A3
- Smart panel
- Copier
- SRA3
- 96 PPM
- 111 PPM
- 136 PPM
- Features and benefits
-
The RICOH Pro 8300S, 8310S and 8320S are high end mono production printers delivering outstanding uptime performance to help you stay ahead. Featuring highly accurate duplex registration, high resolution of 2400 x 4800dpi and enhanced finishing options, they provide versatile and efficient printing capabilities.
- Produce black and white documents at up to 136ppm
- Broad media handling, supporting media from 40 -350gsm up to 700mm
- New finisher capable of 30 sheet booklet production at 80gsm and it also has dual shift trays with a 4400 sheet stack capacity to maximise productivity.
- New cover interposer with air assist supporting coated media up to 350gsm.
- 17inch large touch screen colour panel for fast and easy set-up. The panel screen can be accessed on a tablet enabling remote operation
- Specifications
-
GENERAL Configuration Console Technology 1-drum dry electrostatic transfer system with internal transfer belt Fusing Oil-less, belt fusing method Continuous print speed 96 ppm Warm-up time 300 seconds Dimensions (W x D x H) 1,141 x 900 x 1,558 mm Weight 413 kg Power source 220 - 240 V, 50/60 Hz, 16 A Duty cycle (per month) 2,900,000 pages SCANNER Resolution 100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi Scan speed B&W: 120 ipm (simplex)/220 ipm (duplex) Maximum scan area 297 x 432 mm PAPER HANDLING Paper input capacity Standard 1st tray: 2,200 sheets, Standard 2nd tray: 550 sheets, Standard 3rd tray: 550 sheets, Optional A4/LT LCT 4th tray: 1,100 sheets, Optional A4/LT LCT 5th tray: 1,100 sheets, Optional A4/LT LCT 6th tray: 2,800 sheets, Optional A3/DLT LCT 4th tray: 1,100 sheets, Optional A3/DLT LCT 5th tray: 2,200 sheets, Optional A3/DLT LCT 6th tray: 1,100 sheets, Optional bypass tray: 500 sheets, Optional vacuum feed LCT T1 tray: 2,200 sheets, Optional vacuum feed LCT T2 tray: 2,200 sheets Maximum input capacity 12,600 sheets Maximum output capacity 14,500 sheets Paper size Maximum: 320 x 700 mm Printable area 320 x 700 mm Paper weight Standard 1st tray: 52.3 - 256 g/m², Standard 2nd tray: 52.3 - 256 g/m², Standard 3rd tray: 52.3 - 256 g/m², Optional A4/LT LCT 4th tray: 52.3 - 216 g/m², Optional A4/LT LCT 5th tray: 52.3 - 216 g/m², Optional A4/LT LCT 6th tray: 52.3 - 163 g/m², Optional A3/DLT LCT 4th tray: 52.3 - 256 g/m², Optional A3/DLT LCT 5th tray: 40 - 300 g/m², Optional A3/DLT LCT 6th tray: 52.3 - 256 g/m², Optional bypass tray: 52.7 - 216 g/m², Optional vacuum feed LCT T1 tray: 40 - 350 g/m², Optional vacuum feed LCT T2 tray: 40 - 350 g/m² CONTROLLER Configuration Embedded CPU Intel Atom Processor BayTrail-I: 1.91 GHz Memory 2 GB HDD Standard: 640 GB Network protocol TCP/IP (IP v4, IP v6) Printer language - Standard PCL5e, PCL6, IRIPS PDF, JPEG, TIFF, IRIPS PostScript 3 Printer language - Optional Adobe PostScript 3, Adobe PDF, IPDS, XPS Network interface 10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet) , USB 2.0 Type A, USB 2.0 Type B, SD card slot, IEEE802.11b/g/n , IEEE802.11a/b/g/n FIERY CONTROLLER Configuration External CPU Intel Processor G4400: 3.3 GHz Memory 8 GB HDD Standard: 500 GB Network protocol TCP/IP (IP v4, IP v6) Printer language - Standard PCL5e, PCL6, IRIPS PostScript 3, IRIPS PDF Printer language - Optional Adobe PostScript 3, Adobe PDF Network interface 10Base-T/100Base-Tx/1000BASE-T (Gigabit Ethernet), USB 2.0 Type A, USB3.0 ECOLOGY Power consumption 2,840 kW
Related software & apps
-
TotalFlow Prep
Makeready software that helps you quickly perform essential tasks like job creation, page order set up and job property and chapter assignment.
-
TotalFlow Production Manager
Efficiently schedule and route cutsheet production print jobs, automate manual tasks, create processes and handle maintenance issues with fewer human touch points and bottlenecks.
Related products
-

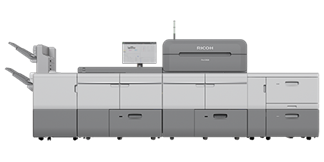

Pro™ C9500
